2N65 N-Channel MOSFET Transistor

Inchange Semiconductor

Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification 2N65 *.

📥 Download Datasheet

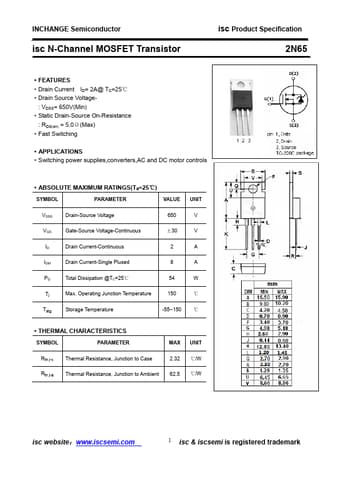

2N65 Datasheet Preview — Preview of 2N65 PDF

Datasheet Specifications

Part number: 2N65
Manufacturer: Inchange Semiconductor
File Size: 130.39 KB
Datasheet: 2N65-InchangeSemiconductor.pdf
Description: N-Channel MOSFET Transistor

Features

* Drain Current ID= 2A@ TC=25℃
* Drain Source Voltage- : VDSS= 650V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 5.0Ω(Max)
* Fast Switching

Applications

* Switching power supplies,converters,AC and DC motor controls
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 650 ±30 V V ID Drain Current-Continuous 2A IDM Drain Current-Single Plused 8A PD Total Dissip
