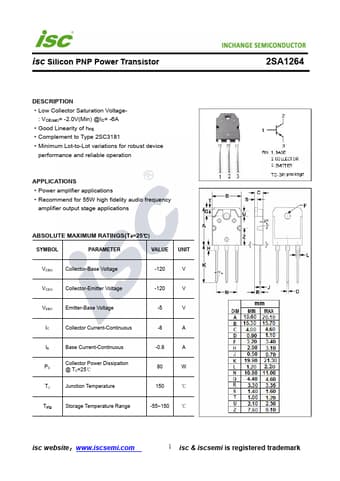

2SA1264 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SA1264

Manufacturer:

Inchange Semiconductor

File Size:

220.96kb

Download:

📄 Datasheet

Description:

Silicon pnp power transistor.

Low Collector Saturation Voltage- : VCE(sat)= -2.0V(Min) @IC= -6A

Good Linearity of hFE

Complement to Type

2SA1264 Application

• Applications
• Power amplifier applications
• Recommend for 55W high fidelity audio frequency amplifier output stage applications ABS
