2SA1214 - Silicon PNP Power Transistor

2SA1214 Description

isc Silicon PNP Power Transistor 2SA1214 .
Collector-Emitter Breakdown Voltage- V(BR)CEO= -50V (Min). Good Linearity of hFE. Wide Area of Safe Operation. Minimum Lot-to-Lot var.

2SA1214 Applications

* Desinged for low frequency power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous Collector Power Dissipati

📥 Download Datasheet

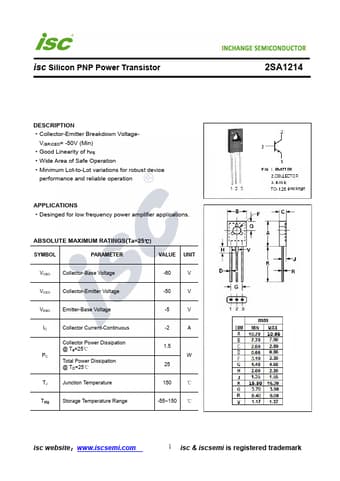

Preview of 2SA1214 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SA1214
Manufacturer
Inchange Semiconductor
File Size
208.97 KB
Datasheet
2SA1214-InchangeSemiconductor.pdf
Description
Silicon PNP Power Transistor
