2SA1265N Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SA1265N

Manufacturer:

Inchange Semiconductor

File Size:

222.31kb

Download:

📄 Datasheet

Description:

Power transistor.

  • Low Collector Saturation Voltage- : VCE(sat)= -2.0V(Min) @IC= -7A
  • Good Linearity of hFE
  • Complement to Type

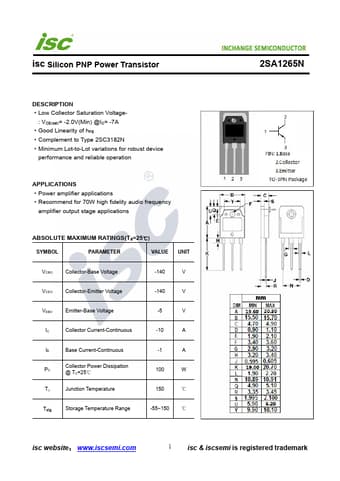

  • Datasheet Preview: 2SA1265N 📥 Download PDF (222.31kb)
    Page 2 of 2SA1265N

    2SA1265N Application

    • Applications
    • Power amplifier applications
    • Recommend for 70W high fidelity audio frequency amplifier output stage applications ABS

    TAGS

    2SA1265N
    POWER
    TRANSISTOR
    Inchange Semiconductor
