2SA1553 POWER TRANSISTOR

📥 Download Datasheet Datasheet Preview Page 1

Description

isc Silicon PNP Power Transistor 2SA1553 .
High Current Capability. High Power Dissipation. High Collector-Emitter Breakdown Voltage- : V(BR)CEO= -230V(Min). Complement to Type.

📥 Download Datasheet

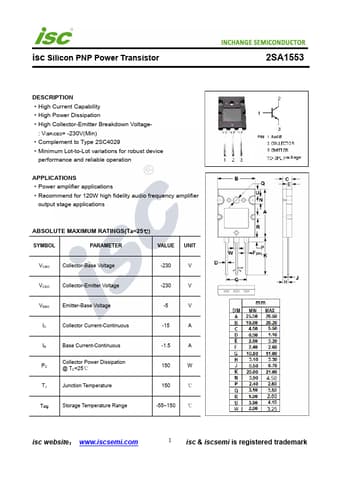

Preview of 2SA1553 PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
2SA1553
Manufacturer
Inchange Semiconductor
File Size
219.67 KB
Datasheet
2SA1553_InchangeSemiconductor.pdf
Description
POWER TRANSISTOR

Applications

* Power amplifier applications
* Recommend for 120W high fidelity audio frequency amplifier output stage applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -230 V VCEO Collector-Emitter Voltage -230 V VEBO Emitter-Base Voltage -
