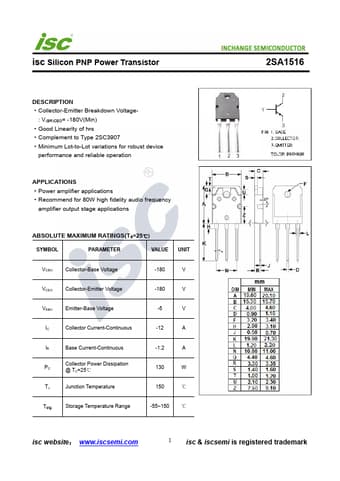

2SA1516 Datasheet, transistor equivalent, Inchange Semiconductor

PDF File Details

Part number:

2SA1516

Manufacturer:

Inchange Semiconductor

File Size:

203.01kb

Download:

📄 Datasheet

Description:

Power transistor.

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -180V(Min)

Good Linearity of hFE

Complement to Type 2SC39

2SA1516 Application

• Applications
• Power amplifier applications
• Recommend for 80W high fidelity audio frequency amplifier output stage applications ABS
