* q q q q Low collector to emitter saturation voltage VCE(sat). Optimum for low-voltage operation and for converters. Allowing supply with the radial taping. Optimum for high-density mounting. (Ta=25˚C) Ratings
* 25
* 20
* 7
* 1
* 0.5 300 150
* 55 ~ +150 Uni
2SA1512
Panasonic Semiconductor
37.16 KB
Silicon pnp transistor.
Transistor

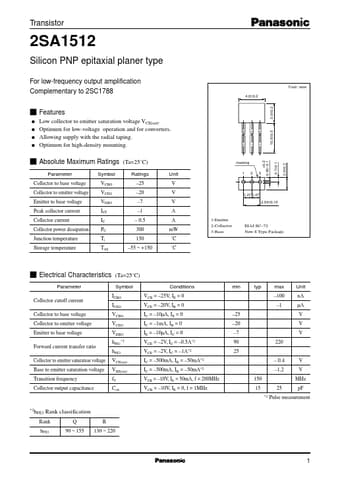

2SA1512
Silicon PNP epitaxial planer type
For low-frequency output amplification Complementary to 2SC1788
Unit: mm
4.0±0.2
3.0±0.2 0.7±0.1.
