2SA1513 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

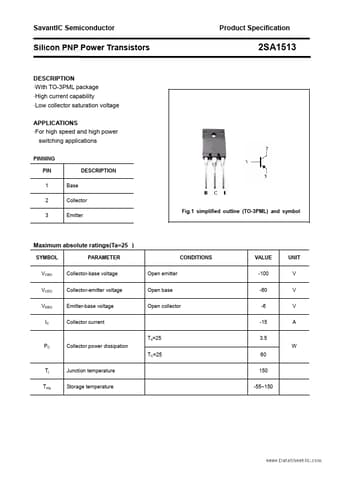

Datasheet preview – 2SA1513

Datasheet Details

Part number 2SA1513
Manufacturer SavantIC
File Size 173.83 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1513 Datasheet
Additional preview pages of the 2SA1513 datasheet.

Product details

Description

With TO-3PML package High current capability Low collector saturation voltage APPLICATIONS For high speed and high power switching applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3PML) and symbol DESCRIPTION Maximum absolute ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Ta=25 PC Collector power dissipation TC=25 Tj Tstg Junction temperature Storage
