Part number:
2SA1515S
Manufacturer:
File Size:
169.34 KB
Description:
Medium power transistor.

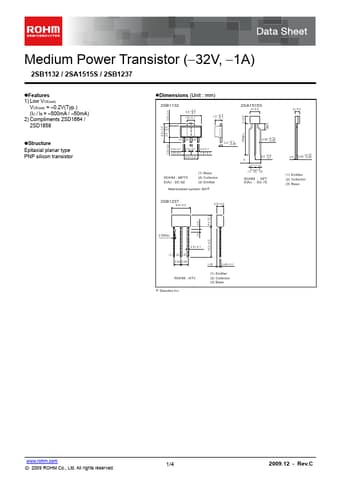

2SA1515S Datasheet (169.34 KB)
* 1) Low VCE(sat). VCE(sat) = 0.2V(Typ.) (IC / IB = 500mA / 50mA) 2) Compliments 2SD1664 / 2SD1858
* Structure Epitaxial planar type PNP silicon transistor
* Dimensions (Unit : mm) 2SB1132 4.5 +0.2
* 0.1 1.6 +
* 0.1 1.5 +0.2
* 0.1 2SA1515S 4 +
* 0.2 2 +
2SA1515S Datasheet (169.34 KB)
2SA1515S
169.34 KB
Medium power transistor.
