2SA1515 - Medium Power Transistor

2SA1515 Description

Transistors Medium Power Transistor ( *32V, *1A) 2SB1132 / 2SA1515S / 2SB1237 F.

2SA1515 Features

* 1) Low VCE(sat). VCE(sat) =
* 0.2V (Typ. ) (IC / IB =
* 500mA /
* 50mA) 2) Compliments 2SD1664 / 2SD1858. FStructure Epitaxial planar type PNP silicon transistor FExternal dimensions (Units: mm) (96-120-B12) 207 Transistors FAbsolute maximum ratings (Ta = 25_C) 2SB1132 / 2SA1515S

📥 Download Datasheet

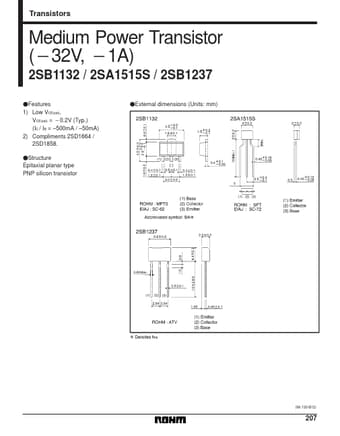

Preview of 2SA1515 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1515
Manufacturer
ROHM ↗
File Size
123.12 KB
Datasheet
2SA1515_Rohm.pdf
Description
Medium Power Transistor
