2SA1633 - POWER TRANSISTOR

2SA1633 Description

isc Silicon PNP Power Transistor 2SA1633 .
Collector-Emitter Breakdown Voltage- V(BR)CEO= -150V(Min). High Power Dissipation. High Current Capacity. Complement to Type 2SC4278.

2SA1633 Applications

* For audio and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -150 V VCEO Collector-Emitter Voltage -150 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous PC Collector Power Dissipation @ T

📥 Download Datasheet

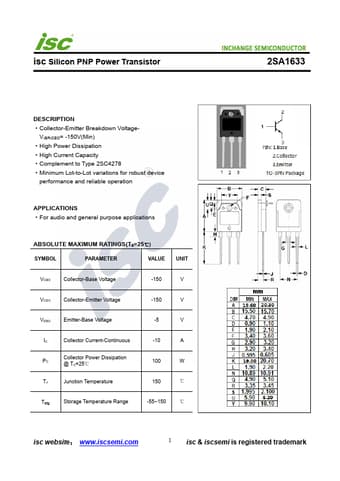

Preview of 2SA1633 PDF
datasheet Preview Page 2
