2SA1615-Z Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SA1615-Z

Manufacturer:

Inchange Semiconductor

File Size:

205.40kb

Download:

📄 Datasheet

Description:

Silicon pnp power transistor.

  • Large current capacity:IC(DC)= -10A IC(pulse)=-15A
  • High hFE and low saturation voltage: hFE= 200min (VCE=-2V,IC=-0.

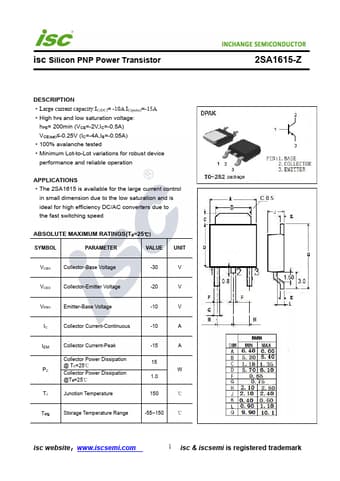

  • Datasheet Preview: 2SA1615-Z 📥 Download PDF (205.40kb)
    Page 2 of 2SA1615-Z Page 3 of 2SA1615-Z

    2SA1615-Z Application

    • Applications
    • The 2SA1615 is available for the large current control in small dimension due to the low saturation and is ideal for high effi
