2SA1615

PNP Silicon Transistor

2SA1615 Features

* Large current capacity: IC(DC):

* 10 A, IC(pulse):

* 15 A

* High hFE and low collector saturation voltage: hFE = 200 MIN. (@VCE =

* 2.0 V, IC =

* 0.5 A) VCE(sat) ≤

* 0.25 V (@IC =

* 4.0 A, IB =

* 0.05 A) QUALITY GRADES

* Sta

2SA1615 General Description

of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples. The incorporation of these circuits, software and information in the design of customer's equipment shall be done under the full r.

2SA1615 Datasheet (144.83 KB)

Preview of 2SA1615 PDF

Datasheet Details

Part number:

2SA1615

Manufacturer:

NEC

File Size:

144.83 KB

Description:

Pnp silicon transistor.

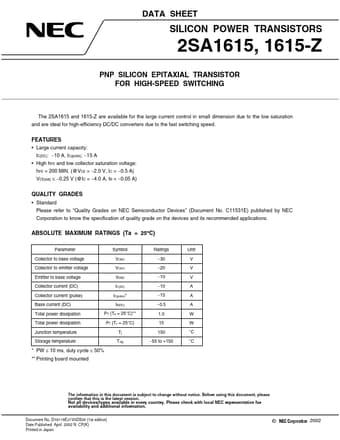

DATA SHEET SILICON POWER TRANSISTORS 2SA1615, 1615-Z PNP SILICON EPITAXIAL TRANSISTOR FOR HIGH-SPEED SWITCHING The 2SA1615 and 1615-Z are available.
