2SA1618 - Silicon PNP Transistor

2SA1618 Description

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1618 Audio Frequency General Purpose Amplifier Applications 2SA1618 Unit: mm * Sm.

2SA1618 Applications

* 2SA1618 Unit: mm
* Small package (dual type)
* High voltage and high current: VCEO =
* 50 V, IC =
* 150 mA (max)
* High hFE: hFE = 120 to 400
* Excellent hFE linearity: hFE (IC =
* 0.1 mA)/ hFE (IC =
* 2 mA) = 0.95 (typ. )
* Complementary to 2SC4207

📥 Download Datasheet

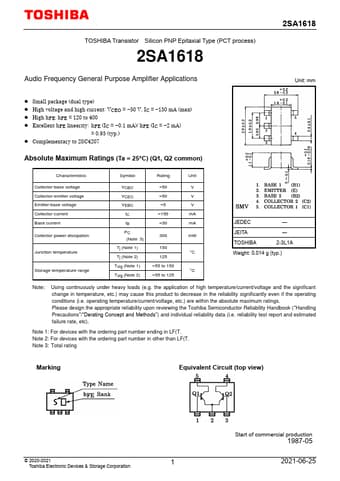

Preview of 2SA1618 PDF
datasheet Preview Page 2 datasheet Preview Page 3
