2SA1611 - PNP Transistor

2SA1611 Description

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD JC(T SOT-323 Plastic-Encapsulate Transistors 2SA1611 TRANSISTOR (PNP) .

2SA1611 Features

* High DC Current Gain
* High Voltage
* Complementary to 2SC4177 SOT
* 323 MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter Value VCBO Collector-Base Voltage -60 VCEO Collector-Emitter Voltage -50 VEBO Emitter-Base Voltage -5 IC Collector Current -100

📥 Download Datasheet

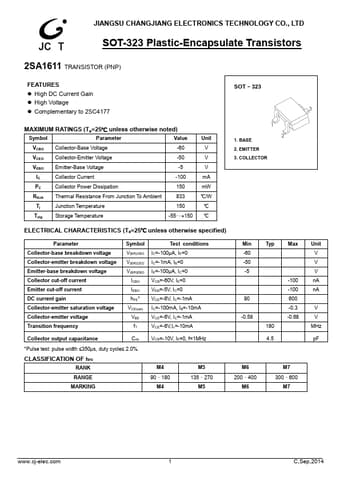

Preview of 2SA1611 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1611
Manufacturer
JCET
File Size
1.41 MB
Datasheet
2SA1611-JCET.pdf
Description
PNP Transistor
