2SA1617 Datasheet - Hitachi Semiconductor

2SA1617 Silicon PNP Epitaxial Transistor

2SA1617 Silicon PNP Epitaxial Application High voltage amplifier Outline MPAK 3 1 2 1. Emitter 2. Base 3. Collector 2SA1617 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 55 50 5 100 150 150 55 to +150 Unit V V V mA mW °C °C Electrical Characte.

2SA1617 Datasheet (24.08 KB)

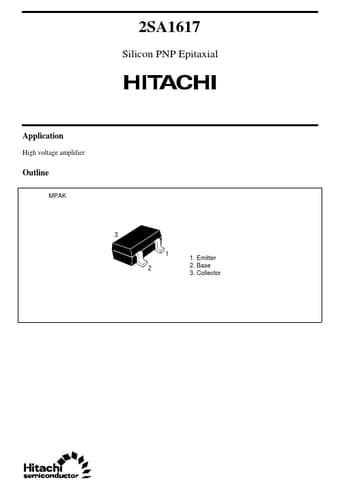

Preview of 2SA1617 PDF
2SA1617 Datasheet Preview Page 2 2SA1617 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1617

Manufacturer:

Hitachi Semiconductor

File Size:

24.08 KB

Description:

Silicon pnp epitaxial transistor.
