2SC1061 Datasheet, Transistors, Inchange Semiconductor

PDF File Details

Part number:

2SC1061

Manufacturer:

Inchange Semiconductor

File Size:

216.70kb

Download:

📄 Datasheet

Description:

Silicon npn power transistors.

  • Low Collector Saturation Voltage- :VCE(sat)= 1.0(V)(Max)@ IC= 2A
  • DC Current Gain- : hFE= 35-320 @ IC= 0.5A

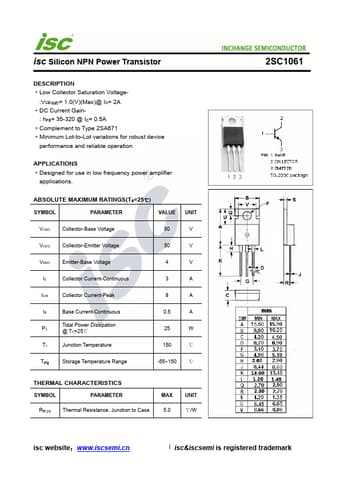

  • Datasheet Preview: 2SC1061 📥 Download PDF (216.70kb)
    Page 2 of 2SC1061

    2SC1061 Application

    • Applications
    • Designed for use in low frequency power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE U
