2SC1827 - Silicon NPN Power Transistors

2SC1827 Description

isc Silicon NPN Power Transistor .
Collector-Emitter Breakdown Voltage- :V(BR)CEO= 80(V)(Min. Complement to Type 2SA769. Minimum Lot-to-Lot variations for robust device p.

2SC1827 Applications

* Designed for audio and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 80 V VCEO Collector-Emitter Voltage 80 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 4 A IB Base Collector Current-

📥 Download Datasheet

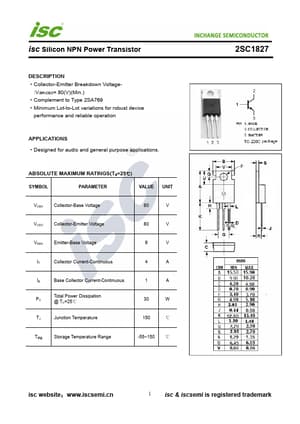

Preview of 2SC1827 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC1827
Manufacturer
Inchange Semiconductor
File Size
192.71 KB
Datasheet
2SC1827_InchangeSemiconductor.pdf
Description
Silicon NPN Power Transistors
