2SC1870 - Silicon NPN Power Transistors

Product Overview

Inchange Semiconductor

Datasheet Details

Part number	2SC1870
Manufacturer	Inchange Semiconductor
File Size	188.27 KB
Description	Silicon NPN Power Transistors
Datasheet	2SC1870 Datasheet

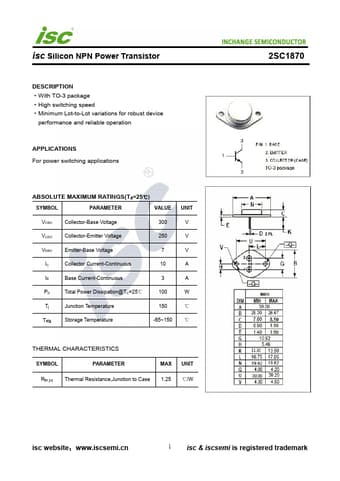

Additional preview pages of the 2SC1870 datasheet.

Product details

Description

With TO-3 package High switching speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS For power switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 300 V VCEO Collector-Emitter Voltage 250 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 10 A IB Base Current-Continuous 3 A PD Total Power Dissipation@TC=25℃ 100 W Tj Junction Temp
