2SC6145A - Silicon NPN Power Transistor

2SC6145A Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC6145A .
High frequency multi emitter transistor. Small package(TO-3P). High power handling capacity ,160W. Complement to Type 2SA2223A. M.

2SC6145A Applications

* Signal transistors for audio amplifiers
* Audio market ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 260 V VCEO Collector-Emitter Voltage 260 V VEBO Emitter-Base Voltage 5V IC Collector Current-Continuous 15 A IB Base Current-Continu

📥 Download Datasheet

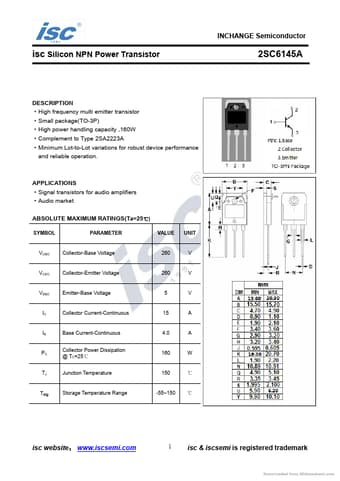

Preview of 2SC6145A PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC6145A
Manufacturer
Inchange Semiconductor
File Size
253.09 KB
Datasheet
2SC6145A-InchangeSemiconductor.pdf
Description
Silicon NPN Power Transistor
