2SD1801 - Silicon NPN Power Transistor

Datasheet Summary

Description

Large current capacitance and wide ASO Small and slim package making it easy to make 2SD1801/2SB1201-used set smaller Low collector-to-emitter saturation voltage Fast switching speed 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and r

📥 Download Datasheet

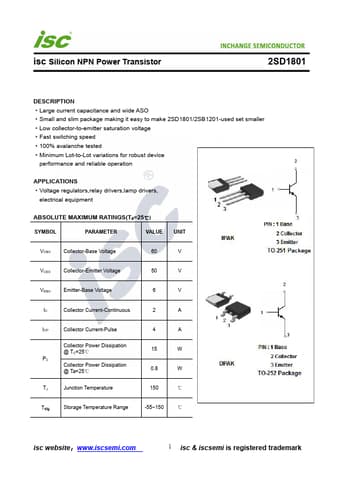

Datasheet preview – 2SD1801

Datasheet Details

Part number 2SD1801
Manufacturer Inchange Semiconductor
File Size 228.67 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet 2SD1801 Datasheet
Additional preview pages of the 2SD1801 datasheet.

📁 Similar Datasheet

  • 2SD1801 - Bipolar Transistor (ON Semiconductor)
  • 2SD1801 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SD1800 - NPN Epitaxial Silicon Transistor (Sanyo Semicon Device)
  • 2SD1802 - NPN Transistor (TRANSYS)
  • 2SD1802 - NPN Epitaxial Planar Silicon Transistors (GME)
  • 2SD1802 - Bipolar Transistor (ON Semiconductor)
  • 2SD1802 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SD1802 - NPN SILICON TRANSISTOR (UTC)
  • 2SD1802 - NPN Transistor (Weitron Technology)
  • 2SD1803 - NPN Transistors (Kexin)
Other Datasheets by Inchange Semiconductor
  • 2SD180 - Silicon NPN Power Transistor
  • 2SD1802 - Silicon NPN Power Transistor
  • 2SD1803 - TO-126 Silicon NPN Power Transistor
  • 2SD1805 - Silicon NPN Power Transistor
  • 2SD1816 - Silicon NPN Power Transistor
  • 2SD1841 - Silicon NPN Power Transistor
  • 2SD1850 - Power Transistor
  • 2SD1857 - Silicon NPN Power Transistor

Full PDF Text Transcription

Click to expand full text
isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD1801 DESCRIPTION ·Large current capacitance and wide ASO ·Small and slim package making it easy to make 2SD1801/2SB1201-used set smaller ·Low collector-to-emitter saturation voltage ·Fast switching speed ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Voltage regulators,relay drivers,lamp drivers, electrical equipment ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 50 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 2 A ICP Collector Current-Pulse Collector Power Dissipation @ TC=25℃ PC Collector Power Dissipation @ Ta=25℃ TJ Junction Temper
