2SD1803 - TO-126 Silicon NPN Power Transistor

Datasheet Summary

Description

High Collector Current-IC= 5.0A Low Saturation Voltage - : VCE(sat)= 0.4V(Max)@ IC= 3.0A, IB= 0.15A Good Linearity of hFE Complement to Type 2SB1203 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Relay drivers,high-speed

📥 Download Datasheet

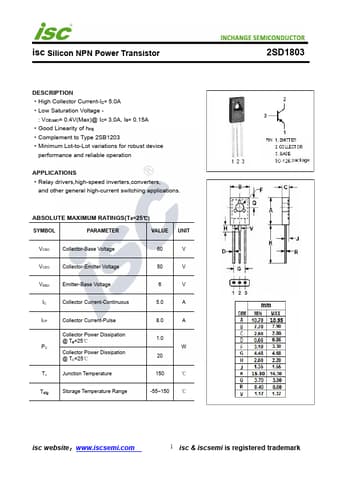

Datasheet preview – 2SD1803

Datasheet Details

Part number 2SD1803
Manufacturer Inchange Semiconductor
File Size 211.96 KB
Description TO-126 Silicon NPN Power Transistor
Datasheet download datasheet 2SD1803 Datasheet
