2SD2102 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SD2102

Manufacturer:

Inchange Semiconductor

File Size:

154.89kb

Download:

📄 Datasheet

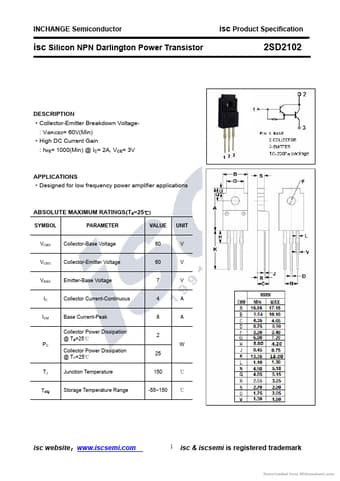

Description:

Silicon npn power transistor.

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 60V(Min)

High DC Current Gain : hFE= 1000(Min) @ IC= 2A, VCE= 3V

2SD2102 Application

• Applications
• Designed for low frequency power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCB

TAGS

2SD2102

Inchange Semiconductor
