2SK1011 - N-Channel MOSFET Transistor

Product Overview

📥 Download Datasheet

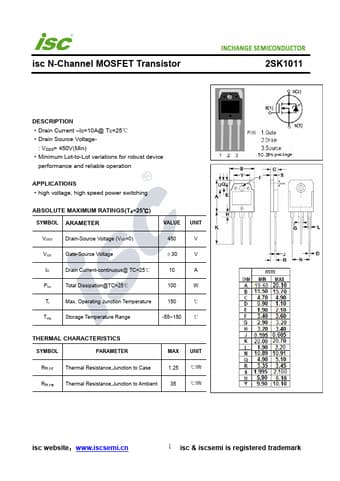

Datasheet preview – 2SK1011

Datasheet Details

Part number 2SK1011
Manufacturer Inchange Semiconductor
File Size 202.96 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK1011 Datasheet
Additional preview pages of the 2SK1011 datasheet.

Product details

Description

Drain Current ID=10A@ TC=25℃ Drain Source Voltage- : VDSS= 450V(Min) Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS high voltage, high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 450 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 10 A Ptot Total Dissipation@TC=25℃ 100 W Tj Max.Operating Junction Temperatur
