2SK1342 - N-Channel MOSFET Transistor

The 2SK1342 by Inchange Semiconductor is a N-Channel MOSFET Transistor. Below is the official datasheet preview.

📥 Download Datasheet

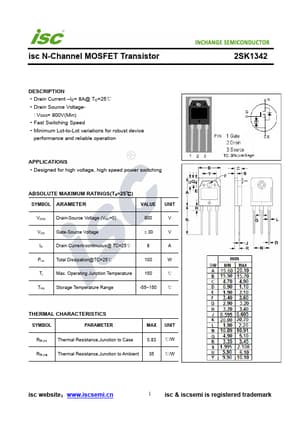

Official preview page of the 2SK1342 N-Channel MOSFET Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SK1342
Manufacturer Inchange Semiconductor
File Size 203.59 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK1342-InchangeSemiconductor.pdf
Additional preview pages of the 2SK1342 datasheet.

2SK1342 Product details

Description

Drain Current ID= 8A@ TC=25℃ Drain Source Voltage- : VDSS= 900V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high voltage, high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 900 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 8 A Ptot Total Dissipation@TC=25℃ 100 W
