Part number:
2SK1302
Manufacturer:
Hitachi Semiconductor
File Size:
48.51 KB
Description:
Silicon n-channel mosfet.
* Low on-resistance
* High speed switching
* 4 V gate drive device Can be driven from 5 V source

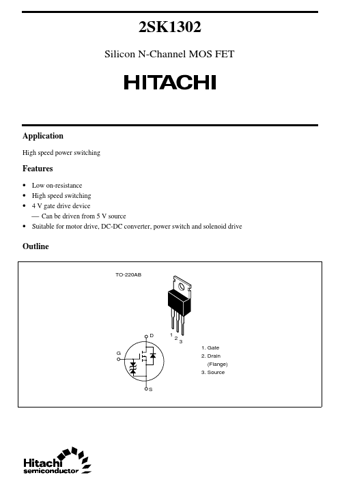

* Suitable for motor drive, DC-DC converter, power switch and solenoid drive Outline TO-220AB D G 1 2 3 1. Gate 2. Drain (Flange) 3. Source S 2SK1302 Absolute Ma
2SK1302
Hitachi Semiconductor
48.51 KB
Silicon n-channel mosfet.
