2SK1300 - Silicon N-Channel MOSFET

2SK1300 Description

2SK1300 Silicon N-Channel MOS FET Application High speed power switching .

2SK1300 Features

* Low on-resistance High speed switching Low drive current 4 V gate drive device  Can be driven from 5 V source
* Suitable for motor drive, DC-DC converter, power switch and solenoid drive Outline TO-220AB D G 1 2 3 1. Gate 2. Drain (Flange) 3. So

📥 Download Datasheet

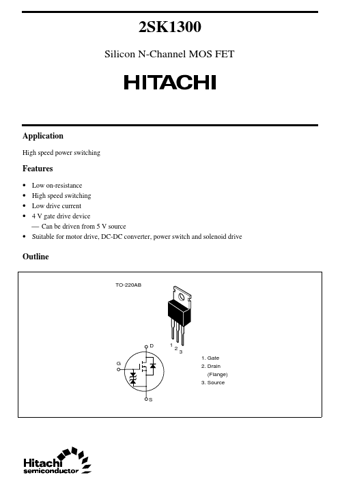

Preview of 2SK1300 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK1300
Manufacturer
Hitachi Semiconductor
File Size
48.93 KB
Datasheet
2SK1300_HitachiSemiconductor.pdf
Description
Silicon N-Channel MOSFET
