2SK1305 Datasheet - Hitachi Semiconductor

2SK1305, Silicon N-Channel MOSFET

2SK1305 Silicon N-Channel MOS FET Application High speed power switching .

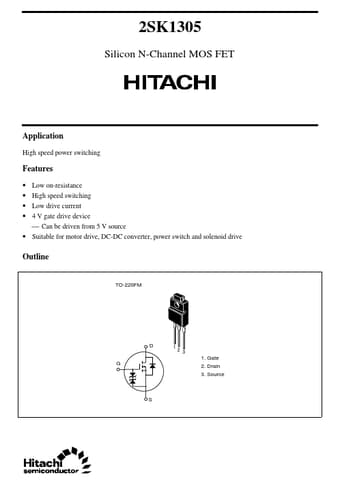

datasheet Preview Page 1 from Datasheet4u.com

2SK1305_HitachiSemiconductor.pdf

Preview of 2SK1305 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

2SK1305

Manufacturer:

Hitachi Semiconductor

File Size:

34.22 KB

Description:

Silicon N-Channel MOSFET

Features

* Low on-resistance High speed switching Low drive current 4 V gate drive device  Can be driven from 5 V source
* Suitable for motor drive, DC-DC converter, power switch and solenoid drive Outline TO-220FM D G 1 2 3 1. Gate 2. Drain 3. Source S
