2SK1310A Datasheet - Toshiba Semiconductor

2SK1310A - N-Channel MOSFET

2SK1310A TOSHIBA FIELD EFFECT TRANSISTOR SILICON N CHANNEL MOS TYPE 2SK1310A RF POWER MOS FET for VHF TV BROADCAST TRANSMITTER z Output Power : Po ≥ 190 W (Min.) z Drain Efficiency : ηD = 65% (Typ.) z Frequency : f = 230 MHz z Push Pull Structure Package Unit in mm ABSOLUTE MAXIMUM RATINGS (Tc = 25°C) CHARACTERISTIC SYMBOL RATING UNIT Drain-Source Voltage Gate-Source Voltage Drain Current Reverse Drain Current Drain Power Dissipation Channel Temperature Storage Temperature.

2SK1310A-ToshibaSemiconductor.pdf

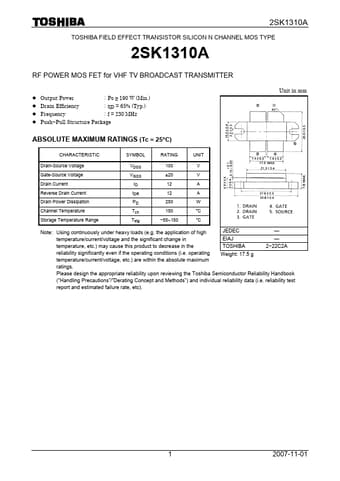

2SK1310A Datasheet Preview — Preview of 2SK1310A PDF

Datasheet Details

Part number:

2SK1310A

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

184.05 KB

Description:

N-channel mosfet.

2SK1310A Distributor

📁 Related Datasheet

2SK1310 2SK1313 2SK1313L 2SK1313S 2SK1314 2SK1314L

📌 All Tags

2SK1310A N-Channel MOSFET Toshiba Semiconductor
