2SK1304

Silicon N-Channel MOSFET

2SK1304 Features

* Low on-resistance High speed switching Low drive current 4 V gate drive device  Can be driven from 5 V source

* Suitable for motor drive, DC-DC converter, power switch and solenoid drive Outline TO-3P D G 1 2 3 1. Gate 2. Drain (Flange) 3. Source

2SK1304 Datasheet (50.77 KB)

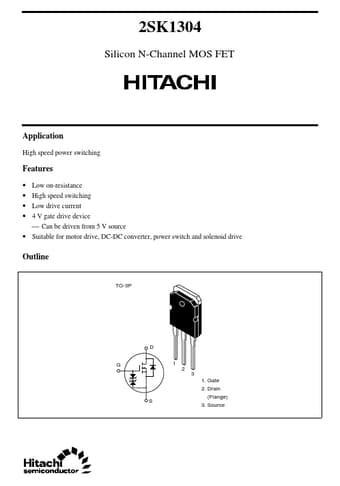

Preview of 2SK1304 PDF

Datasheet Details

Part number:

2SK1304

Manufacturer:

Hitachi Semiconductor

File Size:

50.77 KB

Description:

Silicon n-channel mosfet.
