2SK3730-01MR - N-Channel MOSFET Transistor

Inchange Semiconductor

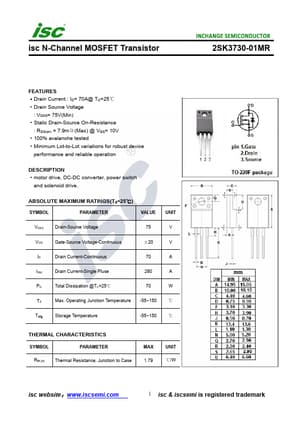

2SK3730-01MR Datasheet Preview — Preview of 2SK3730-01MR PDF

Datasheet Details

Part number	2SK3730-01MR
Manufacturer	Inchange Semiconductor
File Size	279.93 KB
Description	N-Channel MOSFET Transistor
Datasheet	2SK3730-01MR-InchangeSemiconductor.pdf

2SK3730-01MR Product details

Description

motor drive, DC-DC converter, power switch and solenoid drive.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 75 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 70 A IDM Drain Current-Single Pluse 280 A PD Total Dissipation @TC=25℃ 70 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Juncti

Features

Drain Current : ID= 70A@ TC=25℃.
Drain Source Voltage : VDSS= 75V(Min).
Static Drain-Source On-Resistance : RDS(on) = 7.9mΩ(Max) @ VGS= 10V.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
