2SK415 N-Channel MOSFET Transistor

📥 Download Datasheet Datasheet Preview Page 1

Description

isc N-Channel MOSFET Transistor .
Drain Current. ID=3A@ TC=25℃. Drain Source Voltage- : VDSS= 800V(Min). Fast Switching Speed. 100% avalanche tested. Minim.

📥 Download Datasheet

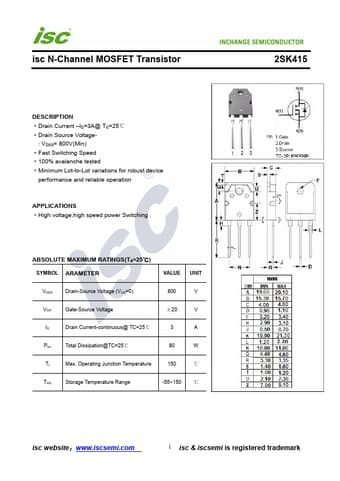

Preview of 2SK415 PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
2SK415
Manufacturer
Inchange Semiconductor
File Size
234.89 KB
Datasheet
2SK415-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor

Applications

* High voltage,high speed power Switching . ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 800 V VGS Gate-Source Voltage ±20 V ID Drain Current-continuous@ TC=25℃ 3 A Ptot Total Dissipation@TC=25℃ 80 W Tj Max. Operating Junction T
