2SK610

N-Channel MOSFET Transistor

2SK610 Features

* Drain Current

* ID=3A@ TC=25℃

* Drain Source Voltage- : VDSS= 400V(Min)

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION

* High Voltage.

* High speed power switching. ABSOLUTE MAXIMUM RATINGS(Ta=25℃)

2SK610 General Description


*High Voltage.
*High speed power switching. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous PD Total Dissipation @TC=25℃ TJ Max. Operating Junction Temperature Tstg Storage Temperature .

2SK610 Datasheet (241.03 KB)

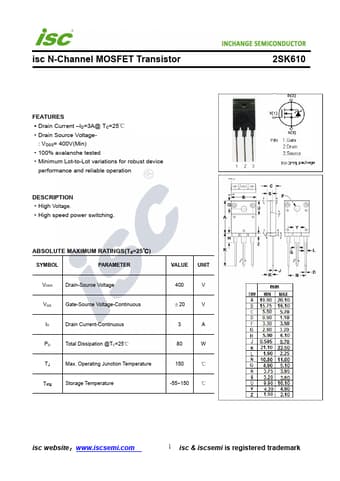

Preview of 2SK610 PDF

Datasheet Details

Part number:

2SK610

Manufacturer:

Inchange Semiconductor

File Size:

241.03 KB

Description:

N-channel mosfet transistor.
