2SK616 Datasheet, Transistor, Inchange Semiconductor

2SK616 Features

  • Transistor
  • Drain Current
      –ID=22A@ TC=25℃
  • Drain Source Voltage- : VDSS= 200V(Min)
  • Fast Switching Speed
  • 100% avalanche tested
  • Minimum Lot

PDF File Details

Part number:

2SK616

Manufacturer:

Inchange Semiconductor

File Size:

235.68kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

  • Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

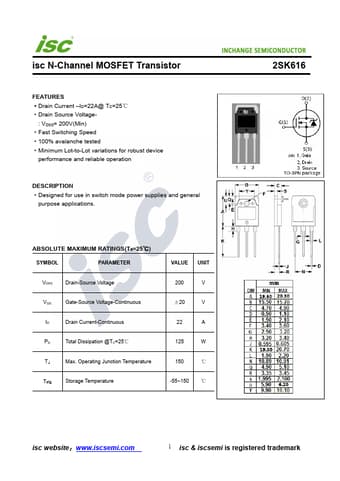

  • Datasheet Preview: 2SK616 📥 Download PDF (235.68kb)
    Page 2 of 2SK616

    2SK616 Application

    • Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Curre
