2SK755 N-Channel MOSFET Transistor

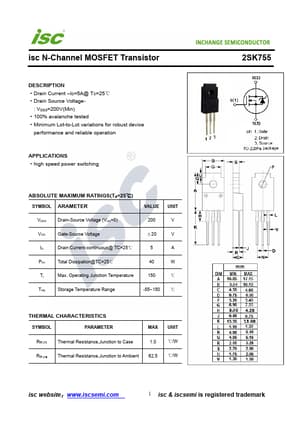

📥 Download Datasheet Datasheet Preview Page 1

Description

isc N-Channel MOSFET Transistor .
Drain Current. ID=5A@ TC=25℃. Drain Source Voltage- : VDSS=200V(Min). 100% avalanche tested. Minimum Lot-to-Lot variations fo.

📥 Download Datasheet

Preview of 2SK755 PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
2SK755
Manufacturer
Inchange Semiconductor
File Size
233.44 KB
Datasheet
2SK755-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor

Applications

* high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 200 V VGS Gate-Source Voltage ±20 V ID Drain Current-continuous@ TC=25℃ 5 A Ptot Total Dissipation@TC=25℃ 40 W Tj Max. Operating Junction Temperature 150
