2SK894 N-Channel MOSFET Transistor

2SK894 Description

isc N-Channel MOSFET Transistor .
Drain Current. ID=8A@ TC=25℃. Drain Source Voltage- : VDSS=500V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations for.

2SK894 Applications

* High voltage.
* high speed power Switching. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±20 V ID Drain Current-continuous@ TC=25℃ 8 A Ptot Total Dissipation@TC=25℃ 125 W Tj Max. Operating Junc

📥 Download Datasheet

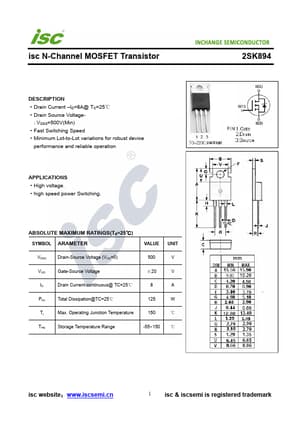

Preview of 2SK894 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK894
Manufacturer
Inchange Semiconductor
File Size
198.75 KB
Datasheet
2SK894-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
