BD943, BD947 - Silicon NPN Power Transistor

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD943, BD947. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number BD943, BD947
Manufacturer Inchange Semiconductor
File Size 212.58 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet BD947-InchangeSemiconductor.pdf
Note This datasheet PDF includes multiple part numbers: BD943, BD947.
Please refer to the document for exact specifications by model.

BD943 Product details

Description

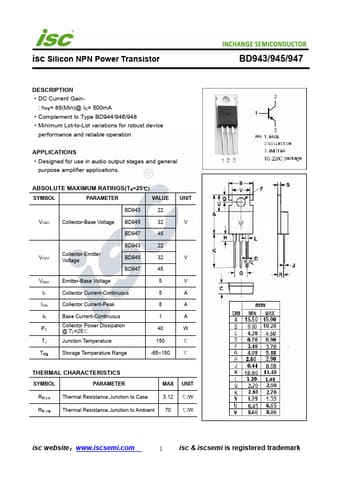

DC Current Gain- : hFE= 85(Min)@ IC= 500mA Complement to Type BD944/946/948 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in audio output stages and general purpose amplifier applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE BD943 22 VCBO Collector-Base Voltage BD945 32 BD947 45 VCEO Collector-Emitter Voltage BD943 22 BD945 32 BD947 45 VEBO Emitter-Base Voltage 5 IC
