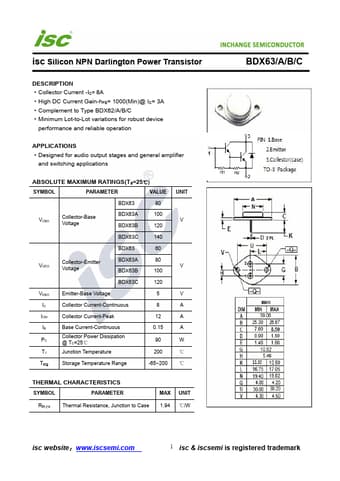

BDX63 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

BDX63

Manufacturer:

Inchange Semiconductor

File Size:

213.06kb

Download:

📄 Datasheet

Description:

Silicon npn darlington power transistor.

Collector Current -IC= 8A

High DC Current Gain-hFE= 1000(Min)@ IC= 3A

Complement to Type BDX62/A/B/C

BDX63 Application

• Applications
• Designed for audio output stages and general amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL P
