BDX63A, BDX63 Silicon NPN Darlington Power Transistor

Inchange Semiconductor

Description

isc Silicon NPN Darlington Power Transistor .
Collector Current -IC= 8A. High DC Current Gain-hFE= 1000(Min)@ IC= 3A. Complement to Type BDX62/A/B/C. Minimum Lot-to-Lot variations.

📥 Download Datasheet

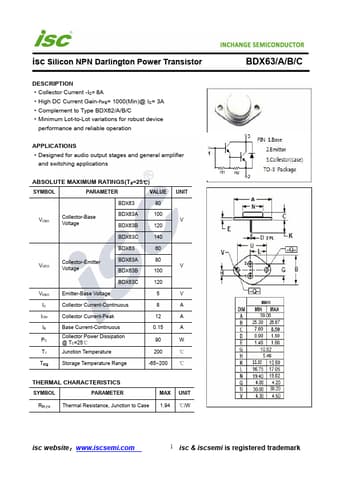

BDX63A Datasheet Preview — This datasheet PDF includes multiple part numbers: BDX63A, BDX63. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BDX63A, BDX63
Manufacturer: Inchange Semiconductor
File Size: 213.06 KB
Datasheet: BDX63_InchangeSemiconductor.pdf
Description: Silicon NPN Darlington Power Transistor
Note: This datasheet PDF includes multiple part numbers: BDX63A, BDX63.
Please refer to the document for exact specifications by model.

Applications

* Designed for audio output stages and general amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE BDX63 80 VCBO Collector-Base Voltage BDX63A 100 BDX63B 120 BDX63C 140 BDX63 60 VCEO Collector-Emitter Voltage BDX63A 80 BDX63B 100 BDX
