IRF620A - N-Channel Mosfet Transistor

Datasheet Summary

Description

purpose applications.

Features

  • Low RDS(on) = 0.626Ω(TYP).
  • Lower Input Capacitance.
  • Improved Gate Charge.
  • Extended Safe Operating Area.
  • Rugged Gate Oxide Technology.

📥 Download Datasheet

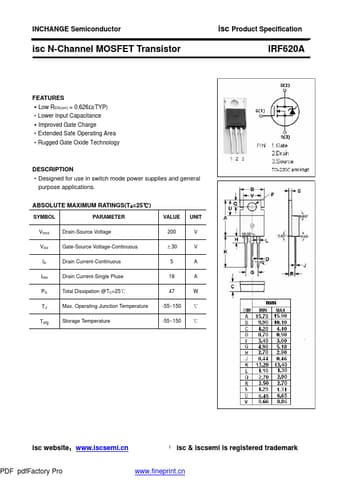

Datasheet preview – IRF620A

Datasheet Details

Part number IRF620A
Manufacturer Inchange Semiconductor
File Size 64.30 KB
Description N-Channel Mosfet Transistor
Datasheet download datasheet IRF620A Datasheet
Additional preview pages of the IRF620A datasheet.

📁 Similar Datasheet

  • IRF620A - Power MOSFET (Fairchild Semiconductor)
  • IRF620 - N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS (STMicroelectronics)
  • IRF620 - N-Channel Power MOSFET (Intersil Corporation)
  • IRF620 - N-Channel Power MOSFET (Fairchild Semiconductor)
  • IRF620 - Power MOSFET (TRANSYS Electronics)
  • IRF620 - Power MOSFET (Vishay)
  • IRF6201PBF - Power MOSFET (International Rectifier)
  • IRF620B - 200V N-Channel MOSFET (Fairchild Semiconductor)
  • IRF620FI - N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS (STMicroelectronics)
  • IRF620PBF - HEXFET Power MOSFET (International Rectifier)
Other Datasheets by Inchange Semiconductor
  • IRF620 - N-Channel Mosfet Transistor
  • IRF620FI - N-Channel Mosfet Transistor
  • IRF620R - N-Channel Mosfet Transistor
  • IRF621 - N-Channel Mosfet Transistor
  • IRF622 - N-Channel Mosfet Transistor
  • IRF623 - N-Channel Mosfet Transistor
  • IRF624 - N-Channel Mosfet Transistor
  • IRF625 - N-Channel Mosfet Transistor

Full PDF Text Transcription

Click to expand full text
INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification IRF620A FEATURES ·Low RDS(on) = 0.626Ω(TYP) ·Lower Input Capacitance ·Improved Gate Charge ·Extended Safe Operating Area ·Rugged Gate Oxide Technology DESCRIPTION ·Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 200 ±30 V V ID Drain Current-Continuous 5A IDM Drain Current-Single Pluse 18 A PD Total Dissipation @TC=25℃ 47 W TJ Max. Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ isc website：www.iscsemi.cn 1 isc & iscsemi is registered trademark PDF pdfFactory Pro www.fineprint.
