IRFP450A - N-Channel MOSFET Transistor

Product Overview

Inchange Semiconductor

Datasheet Details

Part number	IRFP450A
Manufacturer	Inchange Semiconductor
File Size	62.14 KB
Description	N-Channel MOSFET Transistor
Datasheet	IRFP450A Datasheet

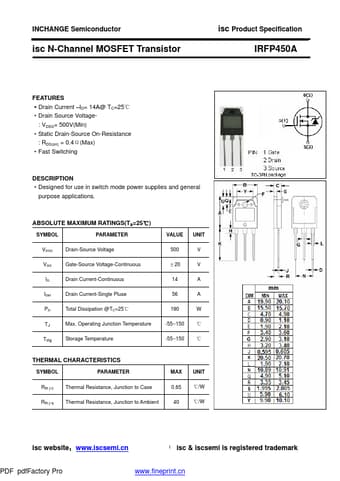

Additional preview pages of the IRFP450A datasheet.

Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 500 V ±20 V 14 A 56 A 190 W -55~150 ℃ -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Rth j-a Thermal Resi

Features

Drain Current.
ID= 14A@ TC=25℃.
Drain Source Voltage- : VDSS= 500V(Min).
Static Drain-Source On-Resistance : RDS(on) = 0.4Ω(Max).
Fast Switching.
