IRFP450B - 500V N-Channel MOSFET

Datasheet Summary

Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology.

Features

  • 14A, 500V, RDS(on) = 0.39Ω @VGS = 10 V Low gate charge ( typical 87 nC) Low Crss ( typical 60 pF) Fast switching 100% avalanche tested Improved dv/dt capability D !.
  • ◀ ▲.
  • G! TO-3P G DS IRFP Series ! S Absolute Maximum Ratings Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL TC = 25°C unless otherwise noted Parameter Drain-Source Voltage - Continuous (TC = 25°C) Drain Current - Continuous (TC = 100°C) Dr.

📥 Download Datasheet

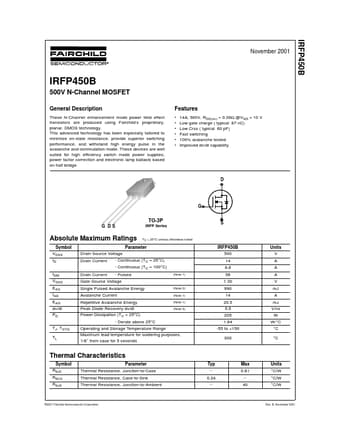

Datasheet preview – IRFP450B
