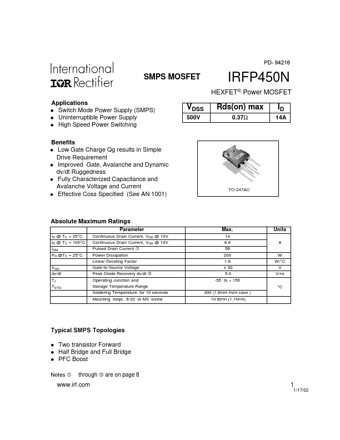

PD- 94216 SMPS MOSFET IRFP450N HEXFET® Power MOSFET Applications Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply l High Speed Power Switching l VDSS 500V Rds(on) max 0.37Ω ID 14A Benefits Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and Dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current l Effective Coss Specified (See AN 1001) l TO-247AC Absolute Maximum Ratings Parameter ID @ TC = 25°C ID @ TC

IRFP450N Features

* same charging time as Coss while VDS is rising from 0 to 80% VDSS Starting TJ = 25°C, L = 1.7mH TJ ≤ 150°C RG = 25Ω, IAS = 14A. (See Figure 12)

* ISD ≤ 14A, di/dt ≤ 510A/µs, VDD ≤ V(BR)DSS, Data and specifications subject to change without notice. This product has been designed and qualifi
