IRFZ24N Datasheet, transistor equivalent, Inchange Semiconductor

IRFZ24N Features

  • Transistor
  • Drain Current
      –ID=17A@ TC=25℃
  • Drain Source Voltage- : VDSS= 55V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 0.07Ω(Max)
  • Fast Sw

PDF File Details

Part number:

IRFZ24N

Manufacturer:

Inchange Semiconductor

File Size:

156.70kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

  • Designed for low voltage, high speed switching applications in power supplies, converters and power motor controls, these de

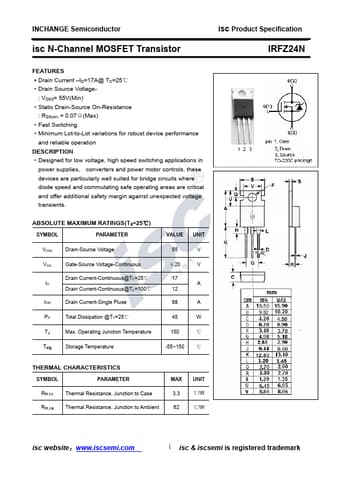

  • Datasheet Preview: IRFZ24N 📥 Download PDF (156.70kb)
    Page 2 of IRFZ24N

    IRFZ24N Application

    • Applications in power supplies, converters and power motor controls, these devices are particularly well suited for bridge circuits where diode spee
