IRFZ24NL Datasheet - International Rectifier

IRFZ24NL, Power MOSFET

www.DataSheet4U.com PD - 9.1355B IRFZ24NS/L HEXFET® Power MOSFET l l l l l l Advanced Process Technology Surface Mount (IRFZ24NS) Low-profile throu.
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

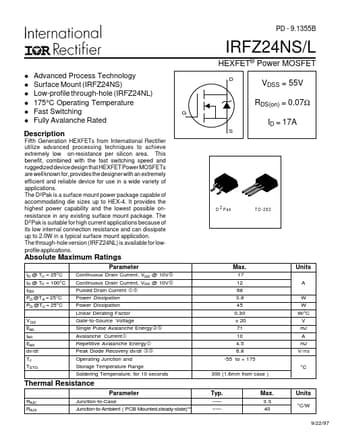

 datasheet Preview Page 1 from Datasheet4u.com

IRFZ24NL_InternationalRectifier.pdf

Preview of IRFZ24NL PDF

Datasheet Details

Part number:

IRFZ24NL

Manufacturer:

International Rectifier

File Size:

288.59 KB

Description:

Power MOSFET

Features

* 10.54 ( .415) 10.29 ( .405) 1.40 (.055) MAX. -A2 4.69 (.185) 4.20 (.165) -B 1.32 (.052) 1.22 (.048) 10.16 (.400) RE F . 6.47 (.255) 6.18 (.243) 15.49 (.610) 14.73 (.580) 5.28 (.208) 4.78 (.188) 2.79 (.110) 2.29 (.090) 2.61 (.103) 2.32 (.091) 8.89 (.350) RE F. 1.78 (.070) 1.27 (.050) 1 3 3X

Applications

* The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible onresistance in any existing surface mount package. The D2 Pak is suitable for high current applications because of its low internal connection
