MJE13002

Silicon NPN Power Transistors

MJE13002 General Description

¡¤With TO-126 package ¡¤High voltage ,high speed APPLICATIONS ¡¤Particularly suited for 115V and 220V switchmode applications such as switching regulators,inverters ,motor controls,solenoid/ relay drivers and deflection circuits. PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DE.

MJE13002 Datasheet (61.02 KB)

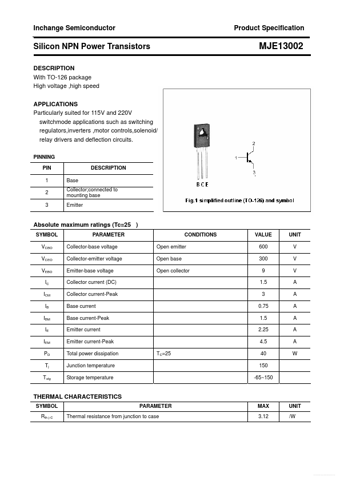

Preview of MJE13002 PDF

Datasheet Details

Part number:

MJE13002

Manufacturer:

Inchange Semiconductor

File Size:

61.02 KB

Description:

Silicon npn power transistors.
