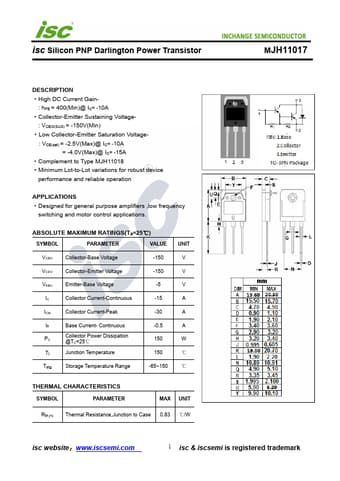

Part number: MJH11017
Manufacturer: Inchange Semiconductor
File Size: 222.87KB
Download: 📄 Datasheet
Description: Silicon PNP Darlington Power Transistor
*Designed for general purpose amplifiers ,low frequency
switching and motor control applications.
ABSOLUTE MAXIMUM .
*High DC Current Gain-
: hFE = 400(Min)@ IC= -10A
*Collector-Emitter Sustaining Voltage-
: VCEO(SUS) = -150V(Min)
*Low Collector-Emitter Saturation Voltage-
: VCE(sat) = -2.5V(Max)@ IC= -10A = -4.0V(Max)@ IC= -15A
*Complement to Type .
