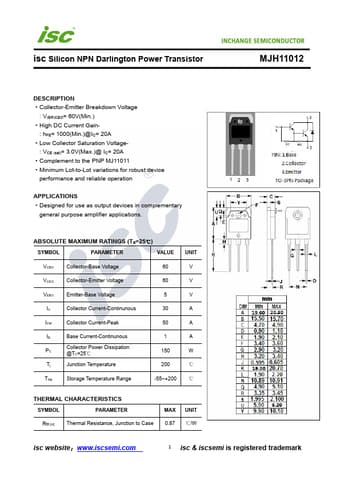

MJH11012 datasheet, transistor equivalent, INCHANGE

MJH11012 Application

*Designed for use as output devices in complementary general purpose amplifier applications. ABSOLUTE MAXIMUM RATIN.

MJH11012 Description

*Collector-Emitter Breakdown Voltage : V(BR)CEO= 60V(Min.)
*High DC Current Gain- : hFE= 1000(Min.)@IC= 20A
*Low Collector Saturation Voltage- : VCE (sat)= 3.0V(Max.)@ IC= 20A
*Complement to the PNP MJ11011
*Minimum Lot-to-Lot var.
