Part number: MJH11018
Manufacturer: Inchange Semiconductor
File Size: 224.46KB
Download: 📄 Datasheet

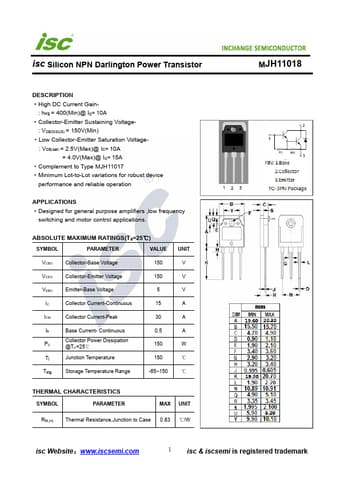

Description: Silicon NPN Power Transistor
*High DC Current Gain-
: hFE = 400(Min)@ IC= 10A
*Collector-Emitter Sustaining Voltage-
: VCEO(SUS) = 150V(Min)
*Low Collector-Emitter Saturation Voltage-
: VCE(sat) = 2.5V(Max)@ IC= 10A = 4.0V(Max)@ IC= 15A
*Complement to Type MJH110.
*Designed for general purpose amplifiers ,low frequency
switching and motor control applications.
ABSOLUTE MAXIMUM .
