2SC2026 Datasheet, transistor equivalent, Inchange

PDF File Details

Part number: 2SC2026

Manufacturer: Inchange

File Size: 175.51KB

Download: 📄 Datasheet

Description: Silicon NPN RF Transistor

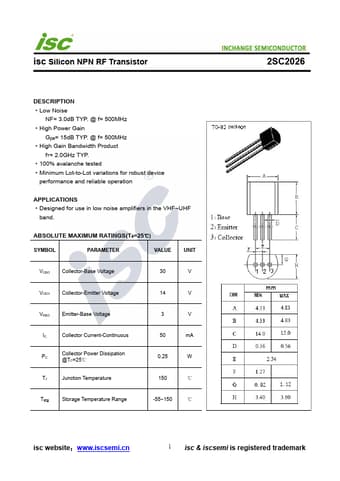

Datasheet Preview: 2SC2026 📥 Download PDF (175.51KB)

2SC2026 Application


*Designed for use in low noise amplifiers in the VHF~UHF band. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER .

2SC2026 Description


*Low Noise NF= 3.0dB TYP. @ f= 500MHz
*High Power Gain Gpe= 15dB TYP. @ f= 500MHz
*High Gain Bandwidth Product fT= 2.0GHz TYP.
*100% avalanche tested
*Minimum Lot-to-Lot variations for robust device performance and reliable operat.

Image gallery

Page 2 of 2SC2026
